Scan SDK

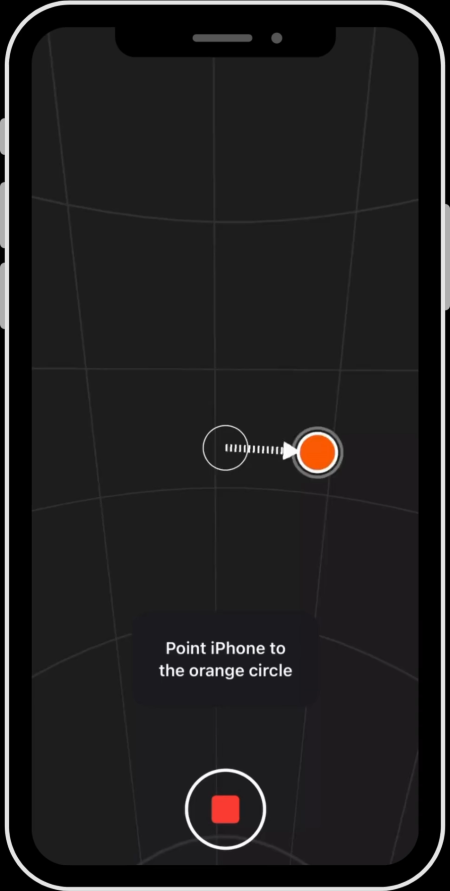

sdk-Demo

App Interface

With Travvir’s SDK, you can easily implement 360° scene capturing functionality directly within your mobile application, both on android & iOS.

Request SDK Access

Fill out the form below to request SDK access & credentials.

Android SDK

Requirements

Version

  • Minimum SDK Android API 26 (Android 8.0)

Permissions

  • Camera
  • Storage (Android 10 & below)
  • Notifications (Android 13+)

Hardwares

  • Camera
  • Accelerometer
  • Gyroscope

Installation

1) Add Maven Central Repository

Ensure Maven Central is included in your project's `settings.gradle.kts`(or `build.gradle.kts` for older projects):


dependencyResolutionManagement {
    repositories {
       google()
       mavenCentral()
    }
}
Note:

Maven Central is typically included by default in modern Android projects. If you're using an older project structure, add mavenCentral() to your build.gradle (Project level).

2) Add Dependency

Add the SDK dependency to your app's build.gradle.kts (Module level)

dependencies {
    implementation("com.travvir:sdk:1.0.1")

    // Required dependencies
    implementation("androidx.core:core-ktx:1.15.0")
    implementation("androidx.appcompat:appcompat:1.7.1")
    implementation("androidx.activity:activity-ktx:1.10.1")
}


3) Sync Project

Sync your Gradle files to download the SDK from Maven Central:

  • Click "Sync Now" in the notification bar.
  • Or select File → Sync Project with Gradle Files from the menu.

4) Update AndroidManifest.xml

Add the required permissions and features:


<!-- Required permissions -->
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE_DATA_SYNC" />
<uses-permission android:name="android.permission.POST_NOTIFICATIONS" />

<!-- Storage permission for Android 10 and below -->
<uses-permission
    android:name="android.permission.WRITE_EXTERNAL_STORAGE"
    android:maxSdkVersion="29" />

<!-- Required hardware features -->
<uses-feature
    android:name="android.hardware.sensor.accelerometer"
    android:required="true" />
<uses-feature
    android:name="android.hardware.sensor.gyroscope"
    android:required="true" />
<uses-feature
    android:name="android.hardware.camera"
    android:required="true" />

<!-- Optional hardware features -->
<uses-feature
    android:name="android.hardware.camera.autofocus"
    android:required="false" />

Quick Start

1) Initialize Session

import com.travvir.sdk.api.ApiClient
import com.travvir.sdk.api.SessionCreationResult
import com.travvir.sdk.activity.Camera3DActivity

class MainActivity : AppCompatActivity() {
    private val sdkKey = "your-sdk-key-here" // Replace with your actual SDK key

    private fun startScanning() {
        ApiClient.generateSessionId(
            context = this,
            sdkKey = sdkKey
        ) { result ->
            when (result) {
                is SessionCreationResult.Success -> {
                    launchCamera(result.sessionId)
                }
                is SessionCreationResult.Error -> {
                    // Handle error
                    handleError(result.error)
                }
            }
        }
    }

    private fun launchCamera(sessionId: String) {
        val intent = Intent(this, Camera3DActivity::class.java).apply {
            putExtra("sessionId", sessionId)
            putExtra("sdkKey", sdkKey)
        }
        startActivity(intent)
    }
}

2) Handle Permissions

private val requiredPermissions = mutableListOf<String>().apply {
    add(Manifest.permission.CAMERA)
    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
        add(Manifest.permission.POST_NOTIFICATIONS)
    }
    if (Build.VERSION.SDK_INT <= Build.VERSION_CODES.Q) {
        add(Manifest.permission.WRITE_EXTERNAL_STORAGE)
    }
}

private val permissionLauncher = registerForActivityResult(
    ActivityResultContracts.RequestMultiplePermissions()
) { permissions ->
    val deniedPermissions = permissions.filterValues { !it }.keys
    if (deniedPermissions.isEmpty()) {
        startScanning()
    } else {
        handlePermissionsDenied(deniedPermissions)
    }
}


API References

Client SDK

ApiClient.generateSessionId(
    context: Context,                        // Application/Activity context
    sdkKey: String,                          // Your SDK key
    sceneName: String? = null,               // Optional scene name
    metadata: Map<String, String>? = null,   // Optional metadata
    callback: (SessionCreationResult) -> Unit // Result callback
)

Response Types


sealed class SessionCreationResult {
    data class Success(val sessionId: String) : SessionCreationResult()
    data class Error(val error: String) : SessionCreationResult()
}

Camera


val intent = Intent(context, Camera3DActivity::class.java).apply {
  putExtra("sessionId", sessionId)
  putExtra("sdkKey", sdkKey)
}
startActivity(intent)

Upload Management


// Start upload service manually (usually automatic)
Utility.startUploadService(this, sdkKey)

// Stop upload service to conserve battery/bandwidth
Utility.stopUploadService(this)

// Check upload progress
Utility.getUploadProgress(context, sessionId) { progress ->
    // -1 = no files, 0..100 = progress
}

iOS SDK

Requirements

Environment

  • Version: iOS 16.0+
  • Xcode: 15.0+
  • Swift: 5.9+

Permissions

  • Camera

Installation

1) Add Framework to Project

  1. Extract the provided TravvirSDK.framework.zip file
  2. Drag and drop TravvirSDK.framework into your Xcode project
  3. Select Copy files to destination (or Move files to destination)
  4. Ensure your app target is selected under Targets

2) Configure Framework Settings

Project ➜ Target ➜ General ➜ Frameworks, Libraries, and Embedded Content:

  • Find TravvirSDK.framework
  • Set embed option to Embed & Sign

3) Update Info.plist


<key>NSCameraUsageDescription</key>
<string>This app needs camera access to perform 3D scanning</string>

4) Import Framework


import TravvirSDK


Quick Start

1) Initialize Session

import SwiftUI
import TravvirSDK
import AVFoundation

struct ContentView: View {
    @State private var sessionId: String?
    @State private var showingCamera = false
    @State private var cameraPermissionGranted = false

    private let sdkKey = "your-sdk-key-here" // Replace with your actual SDK key

    var body: some View {
        VStack {
            if cameraPermissionGranted {
                Button("Start 3D Scanning") { generateSession() }
                    .padding().background(Color.blue).foregroundColor(.white).cornerRadius(10)
            } else {
                Button("Grant Camera Permission") { requestCameraPermission() }
                    .padding().background(Color.orange).foregroundColor(.white).cornerRadius(10)
            }
        }
        .fullScreenCover(isPresented: $showingCamera) {
            if let sessionId = sessionId {
                Camera3DView(sessionId: sessionId, sdkKey: sdkKey)
            }
        }
        .onAppear { checkCameraPermission() }
    }

    private func generateSession() {
        ApiClient.generateSessionId(
            sdkKey: sdkKey,
            sceneName: "My 3D Scan",
            metadata: ["app_version": "1.0.0"]
        ) { error, sessionId in
            if let sessionId = sessionId { self.sessionId = sessionId; self.showingCamera = true }
        }
    }
}

2) Handle Camera Permissions


private func checkCameraPermission() {
    switch AVCaptureDevice.authorizationStatus(for: .video) {
    case .authorized: cameraPermissionGranted = true
    case .notDetermined: requestCameraPermission()
    default: cameraPermissionGranted = false
    }
}

private func requestCameraPermission() {
    AVCaptureDevice.requestAccess(for: .video) { granted in
        DispatchQueue.main.async { cameraPermissionGranted = granted }
    }
}

API References

Client SDK


ApiClient.generateSessionId(
    sdkKey: String,                          // Your SDK key
    sceneName: String? = nil,                // Optional scene name
    metadata: [String: String]? = nil,       // Optional metadata
    completion: @escaping SessionCreationCompletion // Result callback
)

Response Types


public typealias SessionCreationCompletion = (ApiError?, String?) -> Void
public enum ApiError: Error {
    case message(Int, String)
}

Camera


Camera3DView(sessionId: sessionId, sdkKey: sdkKey)

Upload Management


// Start upload manager (usually automatic)
UploadManager.sharedInstance.start(sdkKey: sdkKey)

// Stop upload manager
UploadManager.sharedInstance.stop()

// Check upload progress
UploadManager.sharedInstance.getUploadProgress(sessionId: sessionId) { progress in
    // -1 = no files, 0..100 = progress, 100 = complete
}

Server-side API

Get Session Status

GEThttps://travvir.com/api/v3/sdk/{sessionId}

Retrieve the status, progress, and download URL for a capture session.

Headers


Authorization: Bearer {sdk-server-key}

Response

{
  "status": 1,
  "data": {
    "sessionId": "kPKAOfh52g",
    "metadata": {
      "room_type": "cabin_area",
      "property_id": "1231780"
    },
    "sceneName": "Cabin Area",
    "status": "completed",
    "progress": 100,
    "downloadUrl": "https://example.com/download-url"
  },
  "message": "OK"
}
{
  "status": 0,
  "message": "Job not found"
}

Session Status Values

StatusDescriptionProgress Value
"created"Session initialized, capture not started0
"captured"3D scanning complete, ready for upload0
"uploading"Files being uploaded to server0-100 (calculated)
"uploaded"Upload complete, queued for processing0
"processing"Server processing the scan data0-100 (calculated)
"completed"Processing finished, result ready100
"failed"Error occurred at any stage0

Platform Support

  • Android: API 26+ (Android 8.0)
  • iOS: iOS 16.0+

Best Practices

Session Management

  • Always create a new session for each scan
  • Use descriptive scene names and include relevant metadata

Permission Handling

  • Request permissions before launching camera
  • Handle permission denials gracefully with guidance

License

License Agreement

Copyright (c) 2025 Travvir. All rights reserved.

NOTICE: All information contained herein is, and remains the property of Travvir and its suppliers, if any. The intellectual and technical concepts contained herein are proprietary to Travvir and its suppliers and are protected by trade secret or copyright law.

Dissemination of this information or reproduction of this material is strictly forbidden unless prior written permission is obtained from Travvir.

License Grant

Subject to the terms and conditions of this Agreement, Travvir grants you a limited, non-exclusive, non-transferable, non-sublicensable license to use the Travvir Capture SDK (the "SDK") solely for the purpose of integrating the SDK into your mobile applications.

Limitation of Liability

In no event shall travvir be liable for any claim, damages or other liability, whether in an action of contract, tort or otherwise, arising from, out of or in connection with the sdk or the use or other dealings in the sdk.

Restrictions

  • Reverse engineer, decompile, disassemble, or attempt to derive the source code of the SDK
  • Modify, adapt, translate, or create derivative works based on the SDK
  • Distribute, sublicense, rent, lease, or lend the SDK to any third party
  • Remove, alter, or obscure any proprietary notices on the SDK
  • Use the SDK for any purpose other than as expressly permitted herein

Ownership

The SDK and all intellectual property rights therein are and shall remain the sole and exclusive property of Travvir. No title or ownership of the SDK or any intellectual property rights therein is transferred to you.

Disclaimer of Warranties

The sdk is provided "as is" without warranty of any kind, express or implied, including but not limited to the warranties of merchantability, fitness for a particular purpose and noninfringement.

Limitation of Liability

In no event shall travvir be liable for any claim, damages or other liability, whether in an action of contract, tort or otherwise, arising from, out of or in connection with the sdk or the use or other dealings in the sdk.

Termination

This license is effective until terminated. Your rights under this license will terminate automatically without notice if you fail to comply with any term(s) of this Agreement.

Governing Law

This Agreement shall be governed by and construed in accordance with the laws of the jurisdiction in which Travvir is established, without regard to its conflict of law provisions.
